SmallRig 4183 Full Camera Cage for Sony FX30 / FX3
- SKU:
- SMA4183
- UPC:
- 6941590012353
- MPN:
- 4183
- Shipping:
- Calculated at Checkout
Description
SmallRig Cage for Sony FX30 / FX3 4183 is designed to protect the camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches. At the battery door, there is a hinge arm that fits the camera curve for an improved grip experience for a little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission. Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070; ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B; the top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B; 1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus; two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting; the cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap. An Arca-Swiss quick-release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or a quick-release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428. A magnetic spanner is also included for easy assembly and disassembly.
- Full cage that protects Sony FX30 / FX3.
- Modular design with removable NATO rail; supports the original XLR top handle.
- Hinge arm at the battery door fits the camera curve for an improved grip experience.
- Dedicated HDMI cable clamp ensures stable signal transmission.

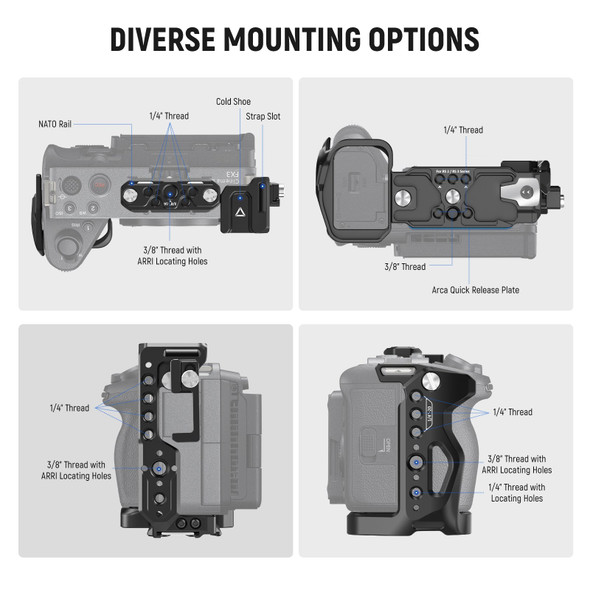

- 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, NATO rails, QD port for the handle, microphone, LED light, monitor, hand strap, etc.
- Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RS 3 gimbal and Arca-Swiss tripod.
Note:
1. Please remove the top NATO rail before installing the original XLR handle.
2. Top 1/4"-20 holes have a hole center distance of 27mm and are therefore incompatible with such accessories with a hole center distance of 18mm as Monitor Mount 2904.
Specifications
-
Product Dimensions: 159 x 101.2 x 66.2mm
- Package Dimensions:180 x 129.5 x 78mm
- Product Weight: 195±5g
- Package Weight: 301±5g
- Material(s): Aluminum Alloy, Stainless Steel
- Work With : Sony FX30 , Sony FX3
Package Includes
-
1 x Cage
- 1 x NATO rail
- 1 x HDMI Cable Clamp
- 2 x 1/4”-20 Screw
