Smallrig 3580BC VB99 Mini 6800mAh 99Wh Li-ion V-mount V-Lock Battery

Smallrig 3580BC New VB99 Mini 14.54V 6.8Ah 98.872Wh Li-ion V-mount V-Lock Battery

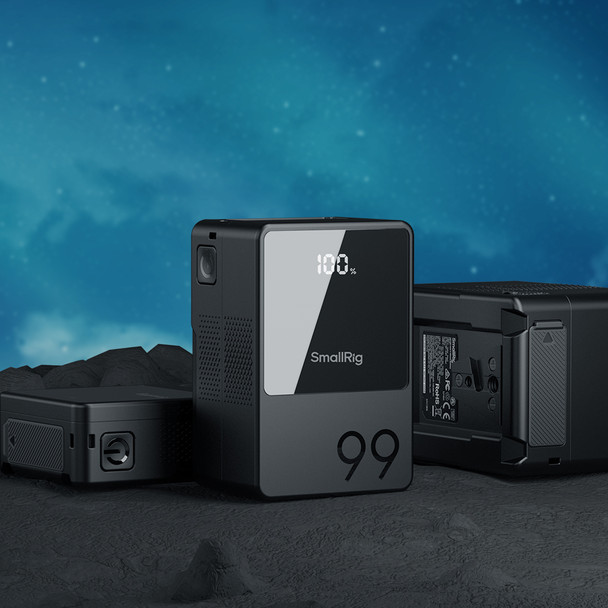

SmallRig 3580bc VB99 Mini V Mount Battery  is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! Intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage, etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16-bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times.  Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features a durable, scratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!

SPECIFICATIONS

• Items		Specifications
  Material(s):		Fire-Resistant PC Material
  Capacity		14.54V 6800mAh 98.872Wh
  Rated Discharge Power		100W
  Input	USB-C	100W（Max）
  	D-Tap / BP	6.84A（Max）
  Output	USB-C	5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A（Max）
  	USB-A	5V⎓3A﹑9V⎓3A﹑12V⎓2A（Max）
  	BP/D-Tap	10A（Max）
  	8V-OUT	8V⎓3A（Max）
  	12V-OUT	12V⎓3A（Max）
  Charging Protocols	USB-C	PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
  	USB-A	QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
  Cutoff Voltage		11.2V
  Operating Temperature		-15℃ to 60℃ / 5℉ to 140℉
  Charging Temperature		0℃ to 45℃ / 32℉ to 113℉
  Optional Charging Methods		BP port charger, 16.8V D-Tap charger, USB-C



  Button Function

  Single-Click	Turn off the screen at normal brightness
  	Restore maximum brightness after dimming
  	Illuminate the screen after shutdown or screen blackout
  Double-Click	Switch between displaying voltage and power in charging and discharging mode
  3-Second Press	Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug

 Package Includes

• 1 x Smallrig 3580BC VB99 Mini 6800mAh V Mount Battery

• 1 x User Manual
