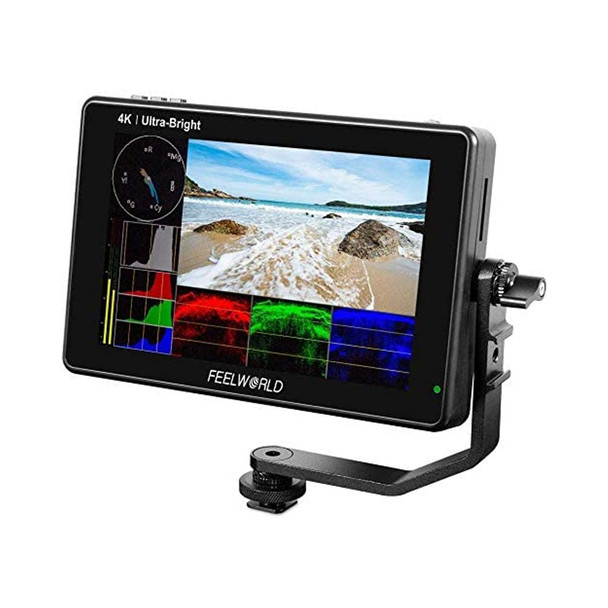

Feelworld LUT7 7" Ultra Bright 2200nit IPS 3D LUT 4K Touch Screen Camera DSLR Field Monitor

Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting. Display live picture on multiple displays simultaneously.



There are 3 standard sized mounting points. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch holes on the left and right sides can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen.





• 2200nit Ultra Bright and Automatic Brightness Adjustment - The 7" 1920 x 1200 monitor has the high bright 2200nit. This make it easy for outdoor shooting in bright daylight without a hood! The monitor has an ambient light sensor, Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.


• Easy Touch Controls and 3D LUT -  The innovative touchscreen LCD user interface provides incredible control.Get rid of complicated Buttons! All of the functions are at your fingertips. Plus you can load custom 3D LUT.


• Trust What You See -  The professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.


• Ideal Camera Partner - Includes 4K HDMI In/ Out, the HDMI connection is compatible up to 4Kp30. You can monitor audio using the 3.5mm stereo headphone jack, or the built in speaker.


• Convenient Mounting  - The outer frame features standard ¼" mount points on the bottom, left and right can be use tilt arm for attaching it to cameras and rigs. 360°rotation of Tilt Arm can be get the best viewing angle and easy mount for accessories like microphones, video lights.

• Screen Size: 7" IPS


• Resolution: 1920x1200 pixels


• Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)


• Aspect Ratio:  16:10


• Brightness: 2200cd/m² (Light Sensor)


• Contrast Ratio: 1200:1


• Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)


• Input: 1 X 4K HDMI


• Output: 1X 4K HDMI, DC Output ( Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor)


• Audio:  3.5mm Stereo Headphone


• HDMI Input/ Output Support Format: 480i/576i/480p/576p
  1080i (60/59.94/50)
  720p (60/59.94/50/30/29.97/25/24/23.98)
  1080p (60/59.94/50/30/29.97/25/24/23.98)
  4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

• Input Voltage: DC12V 2A ( Standrd 5.5mm 2.1mm round plug )


• Consumption: ≤20W


• Working Temperature: -20°C~55°C


• Storage Temperature: -30°C~65°C


• Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom)


• Unit Size: 190Lx126Hx27D (mm)


• Battery Plate: Dual F970 Battery Plate


• Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.  Because the FEELWORLD LUT7S monitor is the ultra bright, we recommend use Sony F970 battery, two F970 batteries can use 4-5 hours.


• The monitor install one F970 battery can be used about 2 hours, and install two F970 batteries can be used for about 4-5 hours. You can choose install 1 or 2 battery base on your need.


• Note : NP-Battery not included  or AC-DC 12V2A Power Adapter with standard 5.5mm plug (sold separately)



 PACKAGE INCLUDES



1 x Feelworld LUT7 7" Ultra Bright 2200nit IPS 1920x1200 3D LUT Touch Screen Camera DSLR Field Monitor

1 x Mini/ Micro HDMI to HDMI Cable

1 x Tilt Arm

1 x Manual
