Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks , 2 channel)

Write a Review

Take a Further 5% on Super Value Lighting Kits

Use Discount Code : Superfurther5

SKU:
TASDR-05X
UPC:
043774033669
Shipping:
Calculated at Checkout
  • Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks , 2 channel)
  • Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks)
  • Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks , 2 channel)
  • Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks , 2 channel)
$249.00

Description



The Tascam DR-05X offers portable, high-quality stereo recording in MP3 or WAV format – including 96-kHz/24-bit high-resolution audio – using microSD, microSDHC or microSDXC media. A pair of omni-directional mics handles up to 125 dB SPL with the sensitivity to capture every detail. Users can also use their own microphone or line-level source through the mini-jack stereo input which includes plug-in power for microphones that need it.



  • Speech, Sound Effects & Music Recording

  • Onboard Omni Mics, Built-In Speaker

  • 3.5mm Mic / Line Input w/ Plug-In Power

  • Built-In Tuner, EQ & Reverb

  • Pre-recording buffer that can record up to 2 seconds prior to starting recording

  • 128×64 pixel graphic LCD with backlight

  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL

  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording

  • Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E , sold separately)

  • Supports 10 languages: English/ Spanish/ French/ Italian/ German/ Russian/ Chinese/ Korean/ Japanese/ Portuguese







Simple to Operate

The DR-05X is quick and easy to use with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding marks are only a button press away. Other features like low-cut filtering, Variable Speed Audition, chromatic tuner and others more can be chosen from the multilingual menu (English, Spanish, Portuguese, French, Italian, German, Russian, Chinese, Korean, Japanese). Three different auto level modes (Limiter, Peak Reduction, Auto Level) can help to prevent accidental distortion while recording. There is also a Level Align function that allows to smooth out any sudden volume jumps during playback, and a built-in speaker is provided for quick check-back. Users may apply one out of six reverb effects to the input or output signal, and an Overdub feature allows to record other parts such as a guitar solo over a recording previously made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, making it easy to re-record.




Transcript Your Voice Recordings

The new Dictation Mode enables the user to jump back and forth in preselected increments while playing back a file. It can be combined with speed control and a special dictation EQ making it useful for transcribing minutes recordings, for example. The new tape-style Overwrite mode with one level of undo allows users to select a drop-in time and replace part of an existing recording.





Turn Your Room Into a Studio – In a Minute

Apart from handheld recording, the DR-05X can also be used as a USB audio interface with two inputs and outputs, making it a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.

Two AA batteries can power the recorder for more than 17 hours, even while recording at CD quality. Operation by USB bus power or an optional AC adapter (PS-P520E) is also possible.




Still Safe If It’s Louder Than You Thought.



Peak Reduction works in rehearsal mode or in record. So even if the sound or performance is louder than the soundcheck you’re safe. Combined with Auto Level and Limiter for preventing distortion, you never have to worry about sudden level changes.






No Need to Go Through “Take 2” All Over Again.

If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. It allows punch-in recording from a desired point. This means destructive editing with one level of undo.




Nondestructive Overdubbing.



The overdubbing function makes it possible to record while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a backing track made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, thus making it easy to re-record.










192 Hours of CD-Quality With a Single Memory Card.



The DR-05X supports SDXC cards as recording media, which are available with very large data capacities. If you record one stereo file in 44.1-kHz / 16-bit CD quality, it can be as long as 192 hours. In MP3 format at 320 kBit/s, such a card can hold up to 896 hours (that is 37 days!).







Specifications



Brand Tascam
Model DR-05X
Mic type / polar pattern Electret condenser / Omni-directional
Mic configurations AB (fixed)
Audio tracks 2
Recording media
  • microSD card (64 MB – 2 GB)
  • microSDHC card (4–32 GB)
  • microSDXC card (48–128 GB)
Recording/playback formats
  • WAV: 44.1/48/96 kHz, 16/24 bit
  • MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kbit/s
Playback speed control 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
Number of channels 2-channel (Stereo) / 1-channel (Mono)
External Mic input
(can provide plug-in power)
3.5-mm stereo mini jack
Headphones / Line output 3.5-mm stereo mini jack
Built-in loudspeaker 0.3 W (mono)
USB port Micro-B connector
Format USB 2.0 High Speed mass storage class
Frequency response 20 Hz – 20 kHz +1/−3 dB  (MIC/EXT IN to LINE OUT, Fs 44.1 kHz, JEITA)
20 Hz – 22 kHz +1/−3 dB  (MIC/EXT IN to LINE OUT, Fs 48 kHz, JEITA)
20 Hz – 40 kHz +1/−3 dB  (MIC/EXT IN to LINE OUT, Fs 96 kHz, JEITA)
Total harmonic distortion ≤0.05 % (MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
S/N ratio ≥92 dB (MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
Power supply
  • 2 x AA batteries (alkaline or NiMH)
  • USB bus power from a computer
  • AC adapter (Tascam PS-P520E, sold separately)
Power consumption 1.7 W (maximum)
Battery life 17+ hours
Display Monochrome LCD (Backlight)
Built-in speaker yes
Internal Storage None
Low-cut filter 40 / 80 / 120 Hz
Auto-level control Peak Reduction, Auto Level, Limiter
Pre-recording buffer 2 seconds
Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
Permissible operating temperature range 0 – 40 °C
Dimensions (W × H × D) 61 × 141  × 26 mm
Weight (with batteries) 165 g
Weight (without batteries) 116 g

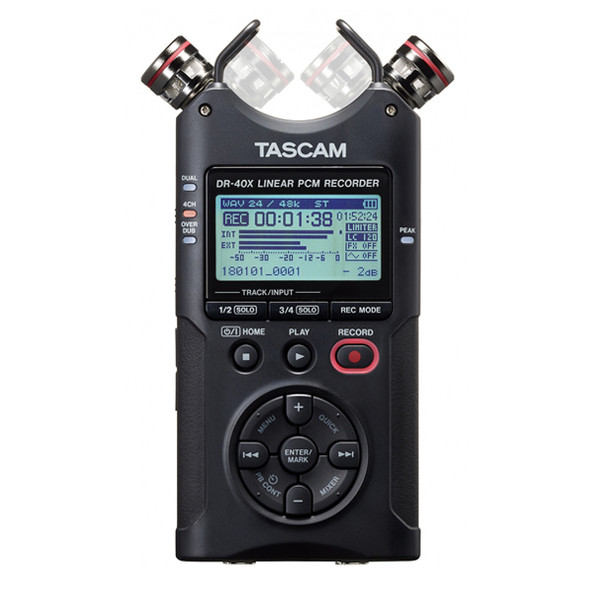

Comparison chart for DR-X series recorders









DR-05X

DR-07X

DR-40X

Mic type / polar pattern

Electret condenser / Omni-directional

Electret condenser / Uni-directional

Electret condenser / Uni-directional

Mic configurations

AB (fixed)

AB/XY (swivelling)

AB/XY (swivelling)

Mid-side mic support

no

no

yes

Audio tracks

2

2

4

Recording resolution

WAV or MP3, up to 96 kHz / 24 bit

WAV or MP3, up to 96 kHz / 24 bit

WAV or MP3, up to 96 kHz / 24 bit

MP3 bit rates

32–320 kbit/s at 44.1/48 kHz

32–320 kbit/s at 44.1/48 kHz

32–320 kbit/s at 44.1/48 kHz

Recording media

microSD up to 128 GB

microSD up to 128 GB

SD up to 128 GB

Power supply

2 × AA, USB, PS-P520E (optional)

2 × AA, USB, PS-P520E (optional)

3 × AA, USB, PS-P520E (optional)

Battery life

17+ hours

17+ hours

up to 18 hours

Mic/line input

Stereo 3.5-mm mini jack with plug-in power

Stereo 3.5-mm mini jack with plug-in power

Balanced XLR/jack combo with 48 V phantom power

Built-in speaker

yes

yes

yes

Phones/line output

Stereo 3.5-mm mini jack

Stereo 3.5-mm mini jack

Stereo 3.5-mm mini jack

Remote control

no

no

RC-3F / RC-10

Low-cut filter

40/80/120 Hz

40/80/120 Hz

40/80/120/220 Hz

Frequency response

20 Hz – 40 kHz +1/−3 dB

20 Hz – 40 kHz +1/−3 dB

20 Hz – 40 kHz +1/−3 dB

Distortion (THD)

≤0.05 %

≤0.05 %

≤0.05 %

S/N ratio

≥92 dB

≥92 dB

≥92 dB

Dual recording

no

no

dual-level

4-track recording

no

no

internal mics + stereo line

Non-destructive overdubs

yes

yes

yes

Dictation mode

yes

yes

yes

Auto-level control

Peak Reduction, Auto Level, Limiter

Peak Reduction, Auto Level, Limiter

Peak Reduction, Auto Level, Limiter

Auto recording by input level

yes

yes

yes

Pre-recording buffer

2 seconds

2 seconds

2 seconds

Self-timer

yes

yes

yes

Mark function

yes

yes

yes

Variable speed audition

yes

yes

yes

Playlist function

yes

yes

yes

Playback EQ

yes

yes

yes

Auto level align on playback

yes

yes

yes

Reverb effect

yes

yes

yes

Chromatic tuner

yes

yes

yes

Multilingual menu

yes

yes

yes

USB audio interface mode

yes

yes

yes

Dimensions (W × H × D)

61 mm × 141 mm × 26 mm

68 mm × 158 mm × 26 mm

70 mm × 155 mm × 35 mm

Weight with batteries

165 g

171 g

282 g





Package Includes



1 x Tascam DR-05X Stereo Handheld Digital Audio Recorder and USB Audio Interface (Portable , 2 Tracks)
