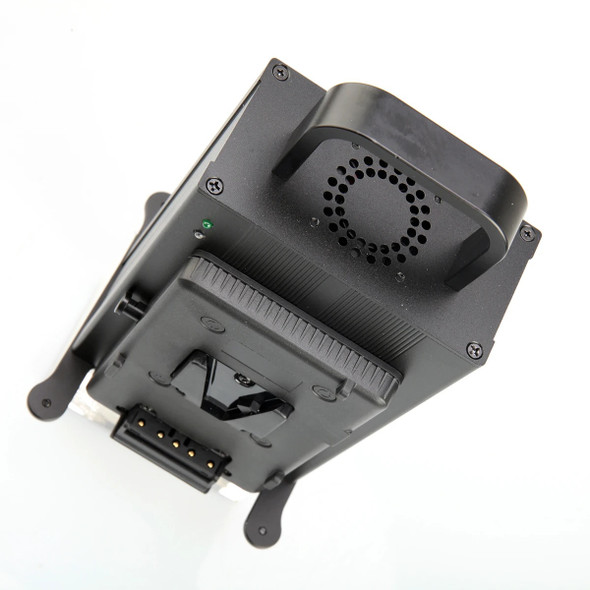

Fotolux VM-2CH V-Mount V-Lock Battery Dual Charger (with 2x USB output)

Fotolux BP-2CH V-Mount V-Lock Battery Dual Charger can charge two channels of broadcasting batteries (14.4V/14.8V) simultaneously. LED power indicator with built-in intelligent control circuit for temperature, current and voltage protection. It has two USB ports allowing additional charging of mobile phones, tablets, on-camera light sources.

• Batteries to be charged: V-Mount 14.4V/14.8V V-mount lithium-ion battery
• Input: AC 100V-240V, 50/60Hz 2A Max
• DC Output: 16.8V - 2.2A *2
• USB output:  5V-2A*1 / 5V-1A*2
• Operation temp: 0C°~40°C
• Dimensions (L x W x H): 290 x 132 x 87mm

Operation Instruction:

1. Insert one or two V-mount battery onto the Charger mounting plate.


2. Connect the power cable to the AC main power point.


3. Switch ON the charger. LED indicator will light up in RED while charging. LED will change to GREEN when reaching 85% capacity. LED will become GREEN OFF once the battery is fully charged. Charging time is about 1-2hrs depends on the capacity of battery.


4. Switch OFF the charger and remove the battery from the Charger.

Notes:

1. This charger is designed for indoor use only.
2. Do not cover the charger and battery while charging. Only charge the battery in well ventilated environment.
3. Do not open the charger for unauthorised repair.

Package Includes

• 1 x Fotolux BP-2CH V-Mount V-Lock Battery Dual Charger( with 2x USB output)
• 1 x Power Cable (AUS Plug)

Note: V-mount batteries sold separately
