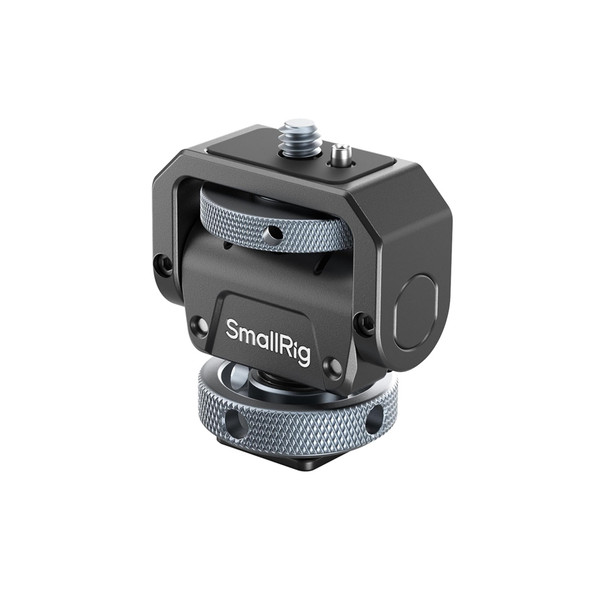

SmallRig 3809 Monitor Mount Lite with Cold Shoe

The SmallRig Monitor Mount Lite with Cold Shoe 3809 is designed to attach monitor. Its bottom cold shoe fits camera hot shoe or handle cold shoe; the top 1/4"-20 screw supports monitor, microphone, light, etc. It can swivel 360° and tilts 180°, with degree of tightness adjusted via a wrench. The 1/4"-20 threaded hole at the bottom enables it to attach Magic Arm 2070, Ball Head 1135, etc.; the upper & lower thumbscrew has holes for wrench to easily disassemble. Also, its top features a protective rubber pad for more friction to prevent deflection.

• Highly compatible cold shoes.

• Swivels 360° and tilts 180°, tightness adjustable on each axis.
• 90° tilt load capacity: 3.2kg; 45° tilt load capacity: 2.5kg；30° tilt load capacity: 2.3kg.
• Upper & lower thumbscrew has holes for spanner for easy disassembly.
• Built-in 1/4"-20 threaded hole for magic arm, ball head, etc.

Note:

• Please do use the Allen Wrench to re-tighten the thumbscrew for further security
• Please install the monitor before adjusting its angle

Specifications

• Compatibility: 5" & 7" monitors, accessories weighing less than 3.2kg
• Product Dimensions: 42.7 x 44.8 x 30mm
• Package Dimensions: 78 x 67 x 42mm
• Net Weight: 60g±5g
• Package Weight: 80g±5g
• Material: Aluminum Alloy

Package Includes

• 1 x SmallRig 3809 Monitor Mount Lite with Cold Shoe
• 1 x Allen Wrench
